CP300 is a new thermal transfer printer dedicated to industrial identification. Redesigned construction and universal functions make it a reliable, mobile tool for marking industrial and home installations including cables, wires, cabinets, pipes and any other components that need to be marked.
MAIN FUNCTIONS

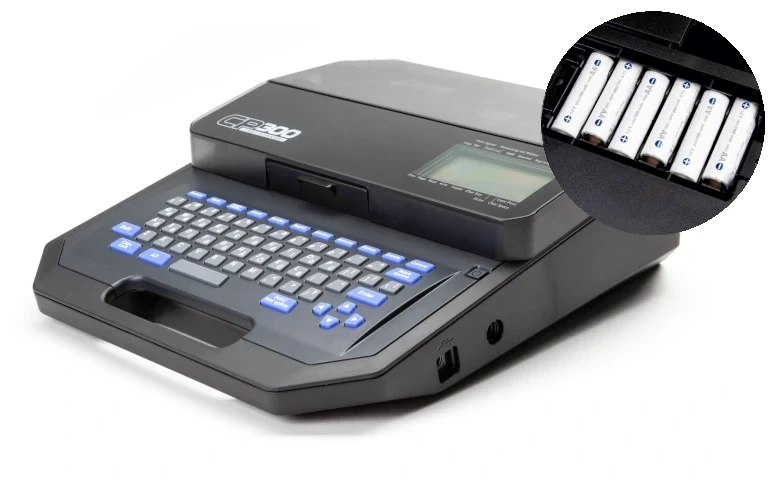

BATTERY POWERED
CP300 is completely mobile because it has an option of battery power using 6 dedicated AA accus with a capacity of 1900mAh each.

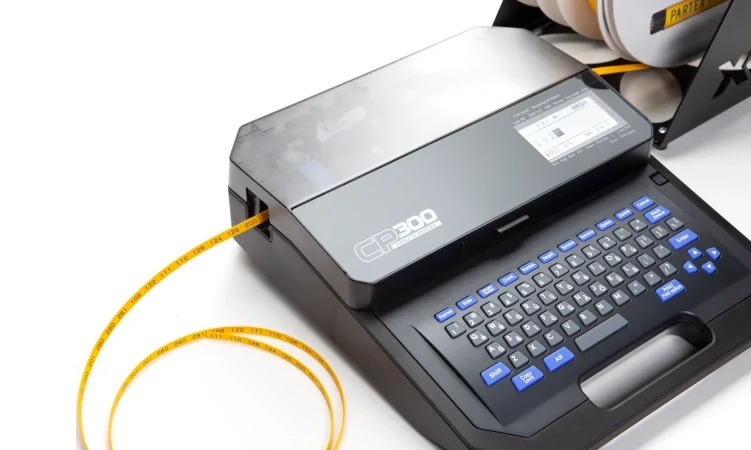

PRINTING IN LOW TEMPERATURES
The optional profile heater increases the quality of the prints, especially when printing at low ambient temperature (5-18°C).

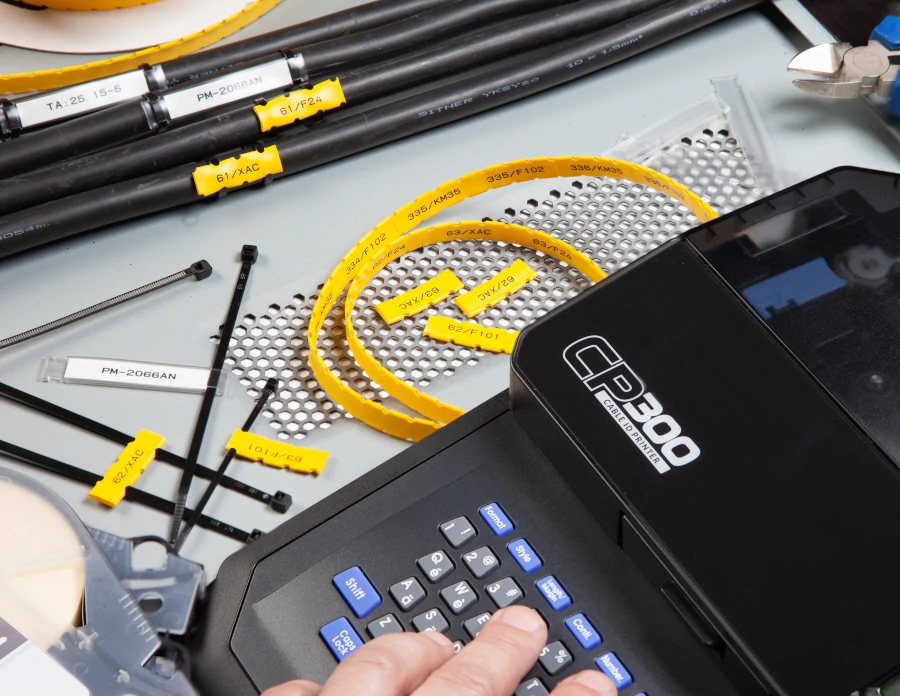

WIDE RANGE OF MEDIA
CP300 prints on several types of media covering a wide range of customers marking needs:
- Oval profiles with diameter 1.5 - 10 mm
- Heatshrinkable tubes 2.4 - 9.5 mm
- Flat insert tags
- Flat cable markers
- Self-adhesive label tapes
TECHNICAL DATA
Printing method
Thermal transfer
Print resolution
300 dpi
Working temperature
23°C
Working humidity
50%
Dimensions
272 mm (W) x 318 mm (D) x 97 mm (H)
Net weight
2.7 kg (printer only)
Packed weight
Approx. 4.4 kg
Character height
1.3 mm full-width, 2 mm full-width/half-width,
2.6 mm full-width/half-width , 3 mm full-width/half-width,
4.0 mm full-width/half-width , 6 mm full-width/half-width
Print speed
25 mm/s, 18.5 mm/s
Print direction
Horizontal/Horizontal, Vertical/Vertical
No. of print lines
2
Character space
3 steps: 0.0 mm(Standard), 0.5 mm and 1.0 mm
No. of job repe
1 - 200 times
No. of piece in Print
1 - 10 pcs (sheets), At max: 10 pcs (sheets) x 200 Job = 2000 pcs.(sheets)
Numbering
Numerics: Decimal code (0-999), Hexadecimal code (0-FFF)
Alphabet: A-Z (single letter), a-z (single letter)
Built-in Memory Size
Print character data storage: approximately 5,000 characters
File storage: approximately 250,000 characters
Cutting
Full Cut, Half Cut
Power Supply
AC Adapter Input : 100 -240 V 50/60 Hz 0.74 A, Output: 13.7 V 2.0 A 27.4 W
Description on the rating plate: 13.7 VDC 0.8 A
Rechargeable battery: eneloop Standard AA Type/HR6 x 6 (BK-3MCC)
*eneloop is registered product name of Panasonic Group.
Average power consumption
13 W
Maximum power consumption
24 W
Accessories
AC Adapter, USB Cable, Ink ribbon 40 m., tube attachment, CD, Soft case
Options
Tube Warmer, Plate/Flat Tube Attachment
